A collaborative research team co-led by Prof. Chi Hou Chan (State Key Laboratory of Terahertz and Millimeter Waves, City University of Hong Kong), Academician Tie Jun Cui, and Prof. Qiang Cheng (State Key Laboratory of Millimeter Waves, Institute of Electromagnetic Space, Southeast University) proposed a novel waveguide-integrated space-time-coding (STC) metasurface antenna with the unique self-filtering property. The STC metasurface antenna can realize complicated wave manipulation in space and frequency domains by simply switching the meta-atoms between radiating and non-radiating states. The findings were published in the prestigious journal Nature Electronics under the title “Sideband-Free Space-Time-Coding Metasurface Antennas” [1]. Dr. Geng-Bo Wu and Dr. Jun Yan Dai are the co-first authors of the paper. Dr. Jun Yan Dai, Prof. Qiang Cheng, Academician Tie Jun Cui, and Prof. Chi Hou Chan are the corresponding authors.
Research Background
While the frequency spectrum of the fifth-generation (5G) wireless communications has not yet been fully utilized by the service providers, the race for 6G R&D among the leading information and communications technology (ITC) companies and academic institutions is gaining momentum. Reconfigurable intelligent surface (RIS) is a new type of artificial electromagnetic (EM) metasurface that can flexibly manipulate the frequency, amplitude, phase, polarization, and propagation direction of EM waves [2]. RIS is widely considered as a key enabler for next-generation 6G wireless communications due to its lightweight, power-efficient, and cost-efficient advantages. Especially, spatiotemporally modulated metasurfaces introduce the time as an additional design degree of freedom, greatly enhancing the wave controllability and expanding their applications [3]. However, the time modulation will generate unwanted harmonic frequencies, known as sidebands. These sidebands carry part of the radiated EM energy and interfere with the useful channels, leading to spectrum pollution. Sideband pollution is an open challenge that hinders the wide-spreading applications of spatiotemporally modulated metasurfaces [4] and time-modulated antenna arrays [5].

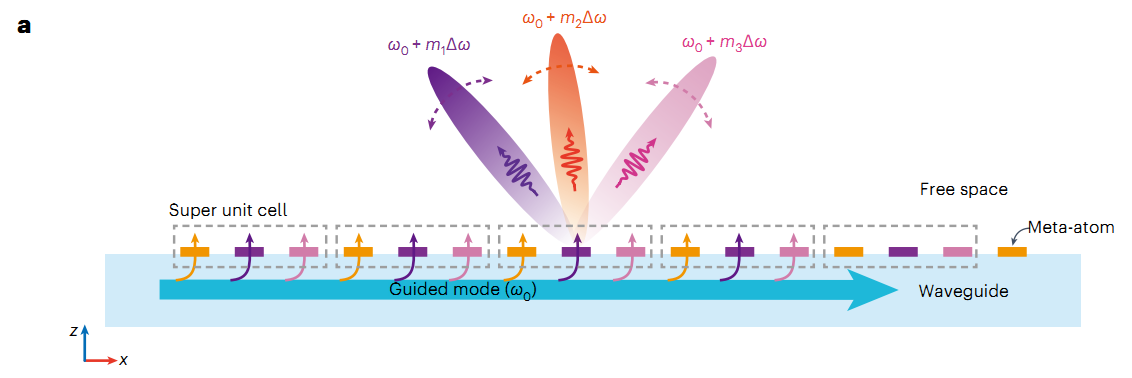

Fig. 1. Conceptual illustration of the STC metasurface antenna.
Research Highlight
Most spatiotemporally modulated metasurfaces are reflective/transmitted structures in open literature, whose input and output are both free-space EM waves. The team proposed a novel waveguide-integrated STC metasurface antenna that the metasurface is coating on the top of the waveguide (Fig. 1). PIN diode is incorporated into each meta-atom, whose radiation state can be switched between radiating and non-radiating states according to the control signal from an FPGA. By simply loading different 1-bit STC matrixes, the metasurface antenna can convert the guided waves into free-space waves with programmable frequency and momentum properties.
Fig. 2. STC metasurface antenna for high-efficiency frequency conversion.

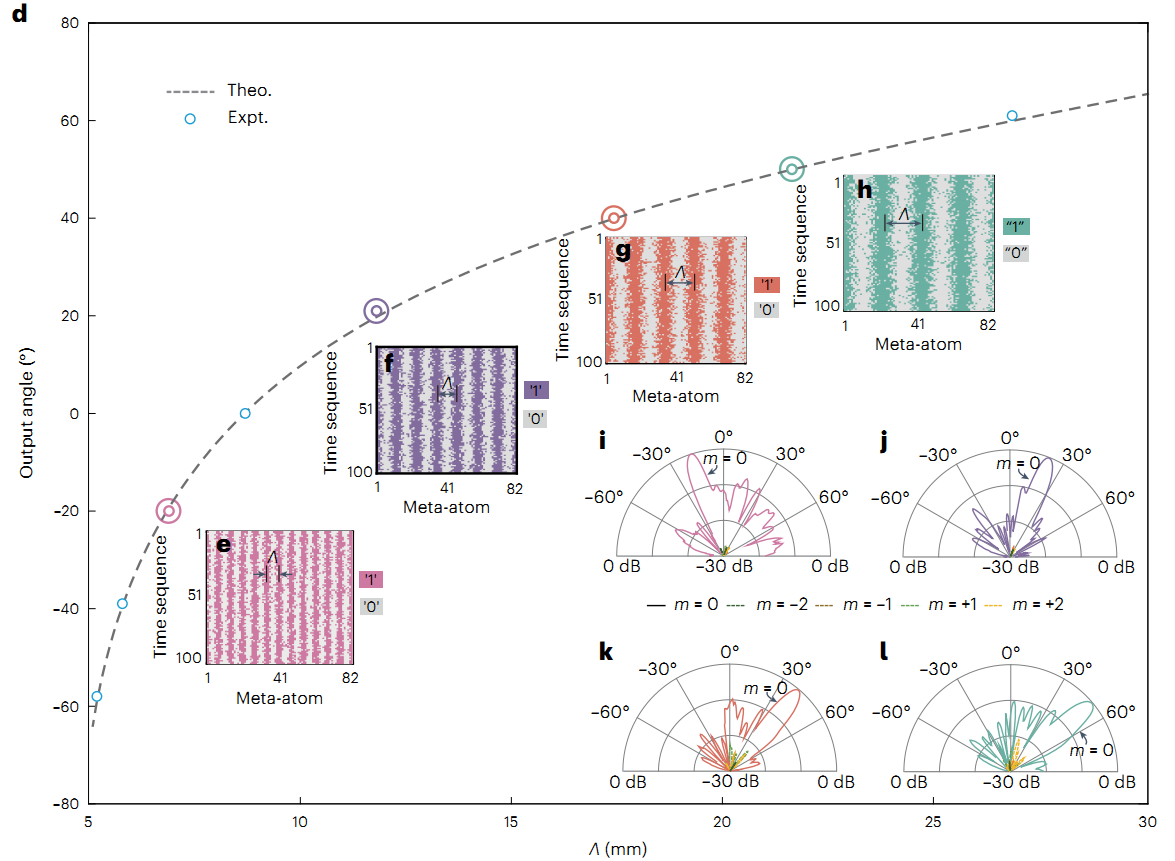

The collaboration team first developed a theoretical model to predict the radiation characteristics of the STC metasurface. The periodical time modulation leads to non-linear effects and the generation of harmonic frequencies. Nevertheless, only the target harmonic can radiate into the free space due to the matching phase. In contrast, other undesired harmonics are highly suppressed in both free space and waveguide due to the tremendous momentum mismatch (Fig. 2). In this manner, the waveguide-integrated STC metasurface antenna can achieve high-efficiency frequency conversion with self-filtering property.
Fig. 3. STC metasurface antenna for beam scanning at the fundamental frequency.
Fig. 4. STC metasurface antenna for multi-harmonic independent control.
The key to realizing high-directivity beam for AM leaky-wave antenna is to form a sinusoidal amplitude distribution along the waveguide aperture [6]. This can be achieved by tuning the width of the spoof surface plasmon polariton (SSPP) transmission line. However, the radiation characteristics cannot be varied post-fabrication [7]. The team leveraged the time-average effect of the time modulation technology to form an equivalent sinusoidal amplitude distribution along the length of the waveguide such that a high-directivity beam can be generated at the fundamental frequency (Fig. 3). The STC metasurface antenna can also simultaneously and independently manipulate multiple harmonic frequencies by leveraging the sub-wavelength property of the meta-atom (Fig. 4). The multi-harmonic radiation increases the number of communication channels, which can find wide applications in multi-target detection and multi-user wireless communications.
Compared to the conventional free-space spatiotemporally modulated metasurfaces, the proposed STC metasurface antenna has many appealing features, including simple 1-bit switching, frequency and momentum manipulations, proof from sideband pollution, and potential on-chip integration. The technology can enable a series of applications in next-generation wireless communications, cognitive radar, and real-time imaging.
